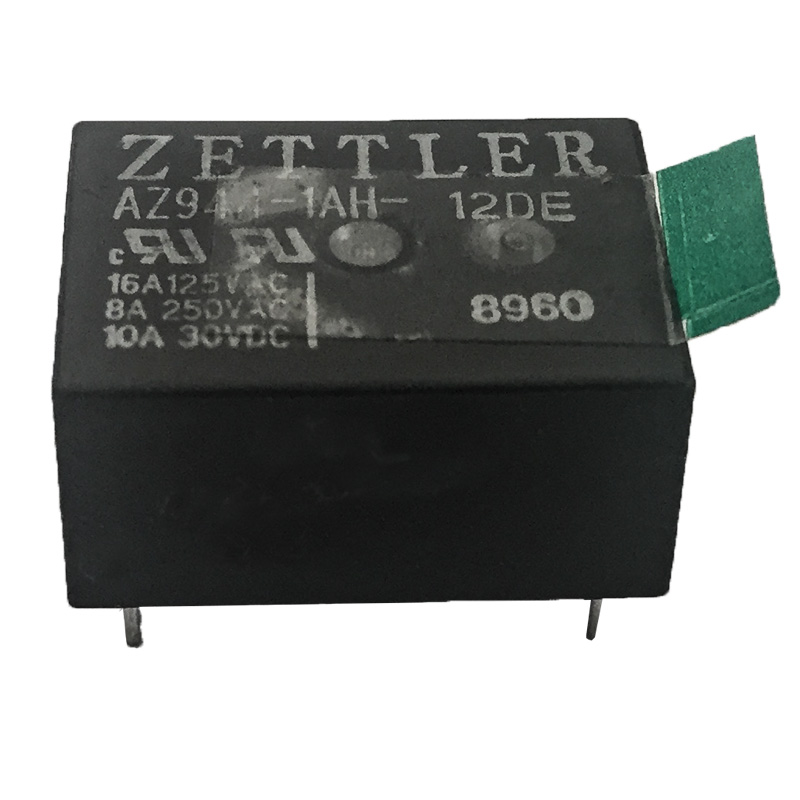

Relè 12V - AZ944 1AH 12DE - ZETTLER
06572
CONTACTS
|
Arrangement |
SPST (1 Form A) |
|||
|
|
SPDT (1 Form C) |
|||
|
|
|
|||
|
Ratings |
Resistive load: |
|||
|
|
Max. switched power: 300 W, 2000 VA (SPST) |
|||
|
|
|
|
|
150 W, 1250 VA (SPDT) |
|
|
Max. switched current: 16 A (SPST), 10 A (SPDT) |
|||
|
|
Max. switched voltage: 250 VAC/125 VDC* |
|||
|
|
*Note: If switching voltage is greater than 30VDC, special |
|||
|
|
precautions must be taken. Please contact the factory. |
|||
|
|
|
|
|
|
|
Rated Load |
|
|
|
|
|
UL, CUR |
16 |
A at |
125 |
VAC, resistive |
|
SPST |
8 |
A at |
250 |
VAC, resistive |
|
|
10 |
A at |
30 |
VDC, resistive |
|
|
1/4 HP |
125 |
VAC |
|
|
|
1/10 HP |
277 |
VAC |
|
|
SPDT |
10 |
A at |
125 |
VAC, resistive |
|
|
5 |
A at |
277 |
VAC, 30 VDC, resistive |
|
|
1/10 HP |
277 |
VAC |
|
|
Material |
Silver cadmium oxide |
|||
|
|
|
|||
|
Resistance |
< 50 milliohms initially |
|||
|
|
(24 V, 1 A voltage drop method) |
|||
Tension
12V
