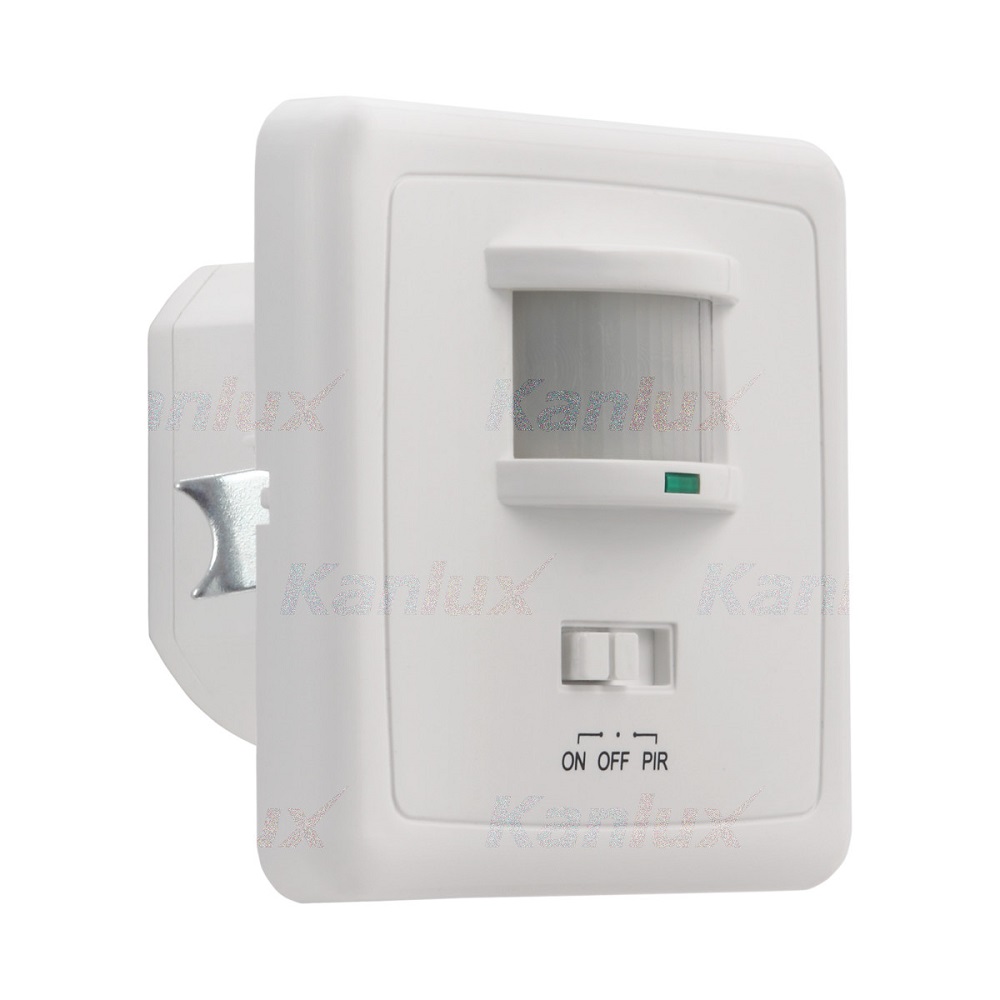

PIR MERGE JQ Kanlux motion sensor

Kanlux MERGE JQ Is the motion sensor with a maximum motion detection range of 5 meters.
Its horizontal operating angle is 360 degrees.
It is possible to adjust both the lighting time and the external lighting level at which the sensor works.

Background information

• EAN13: 5905339076908
• Vendor code: 7960
• Color: white
• Material: plastic material
• Place of use: inside

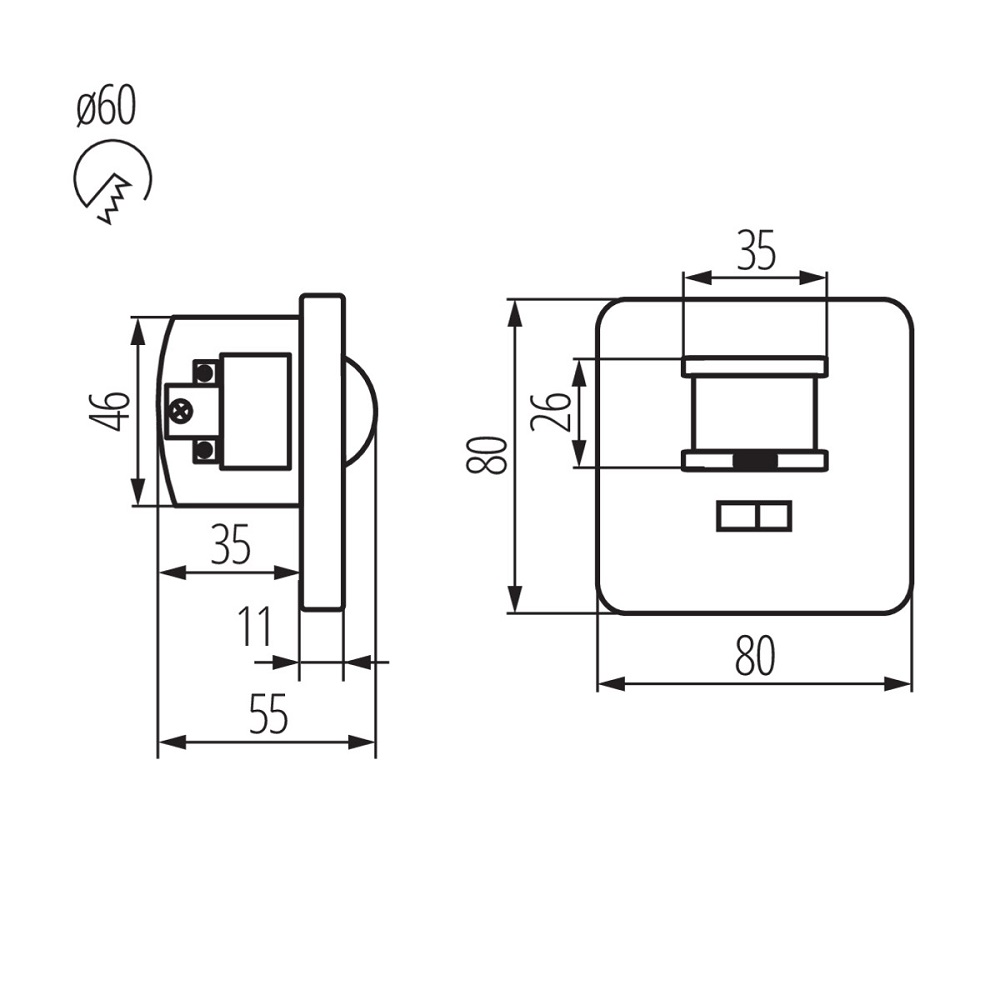

Weight and dimensions

• Height [mm]: 83
• Width [mm]: 55
• Length [mm]: 83
• Weight: 108g

Technical data

• Voltage nominal [V]: 220-240 AC
• Nominal frequency [Hz]: 50/60
• Color: white
• Maximum power [VA]: 1200
• IP degree 20
• Mounting location: for flush mounting in the wall
• Degree of protection against electric shock: II
• Possibility of mounting on normally flammable surfaces: yes

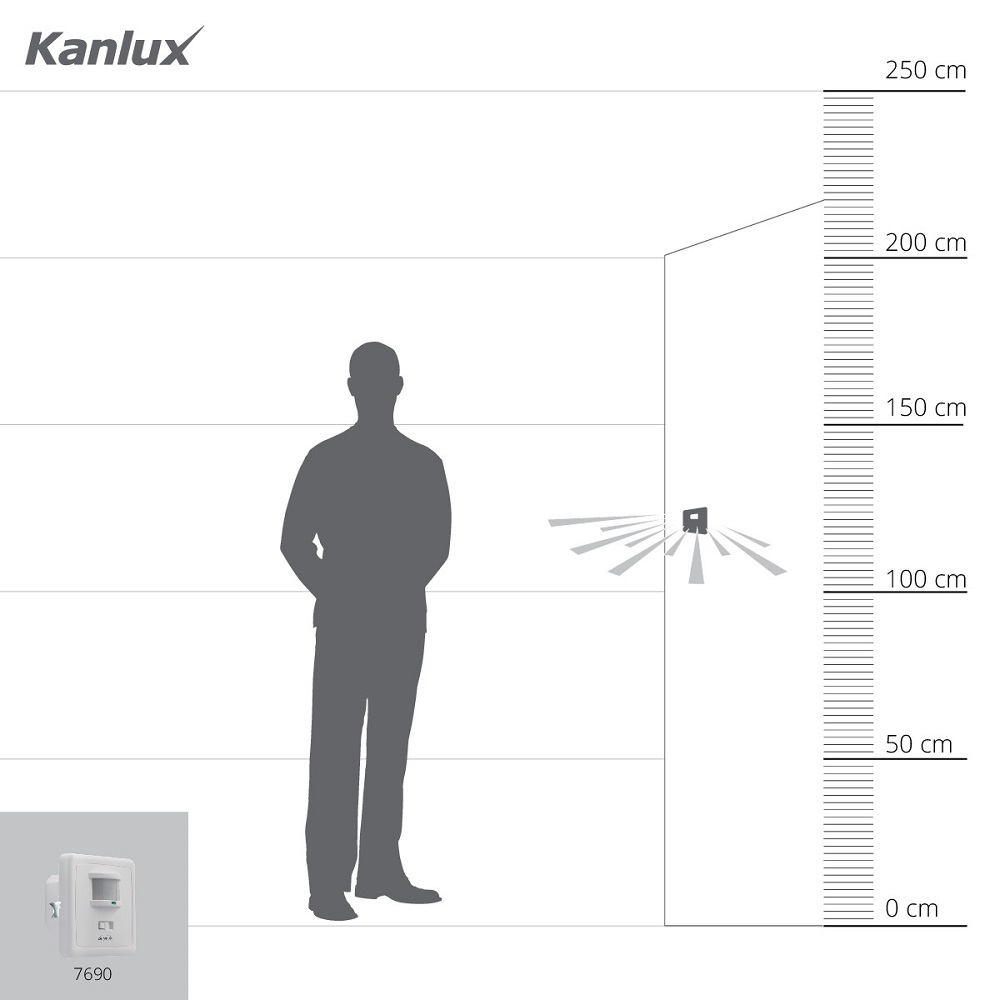

• Sensor range [m]: max 9
• Range of action of the sensor [ø]: H150 / V60
• Minimum run time [s]: 10
• Maximum running time [min]: 7
• Sensor operating time [second-minute]: 10-7
• Sensor type: PIR
• Setting the intensity of illumination with which the sensor detects motion [lx]: 3-2000
• Micro-interval between relay contacts
• Operating temperature [°C]: 5÷25
• Type of connection: terminal block
• Sections of cables used [mm]: 1÷2,5
