Motion sensor MW ROLF JQ Kanlux
KA1094

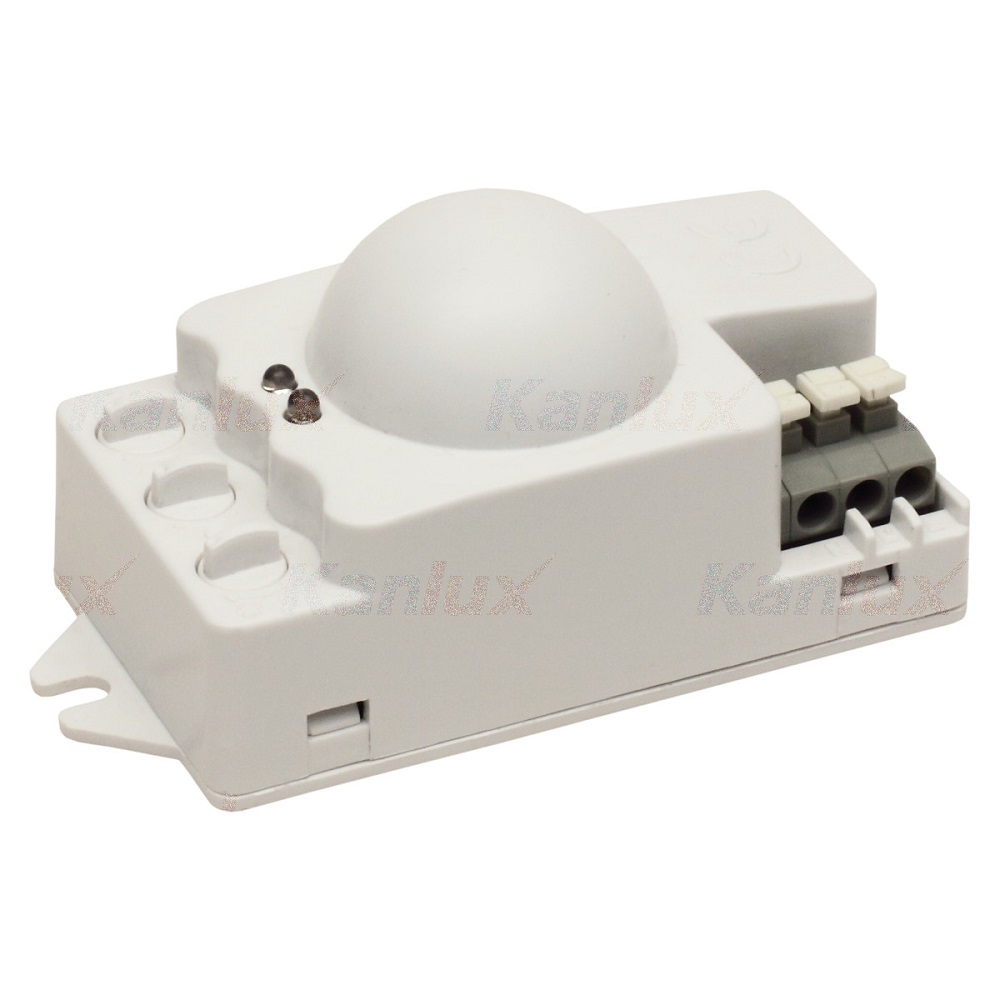

Motion sensor MW ROLF JQ Kanlux
Kanlux ROLF JQ is a microwave motion sensor. Its horizontal operating angle is 360 degrees. Both the lighting time and the external illuminance level at which the sensor works can be adjusted.
Basic information
- EAN13: 5905339088208
- Supplier code: 8820
- Color: white
- Material: plastic material
- Place of use: indoors

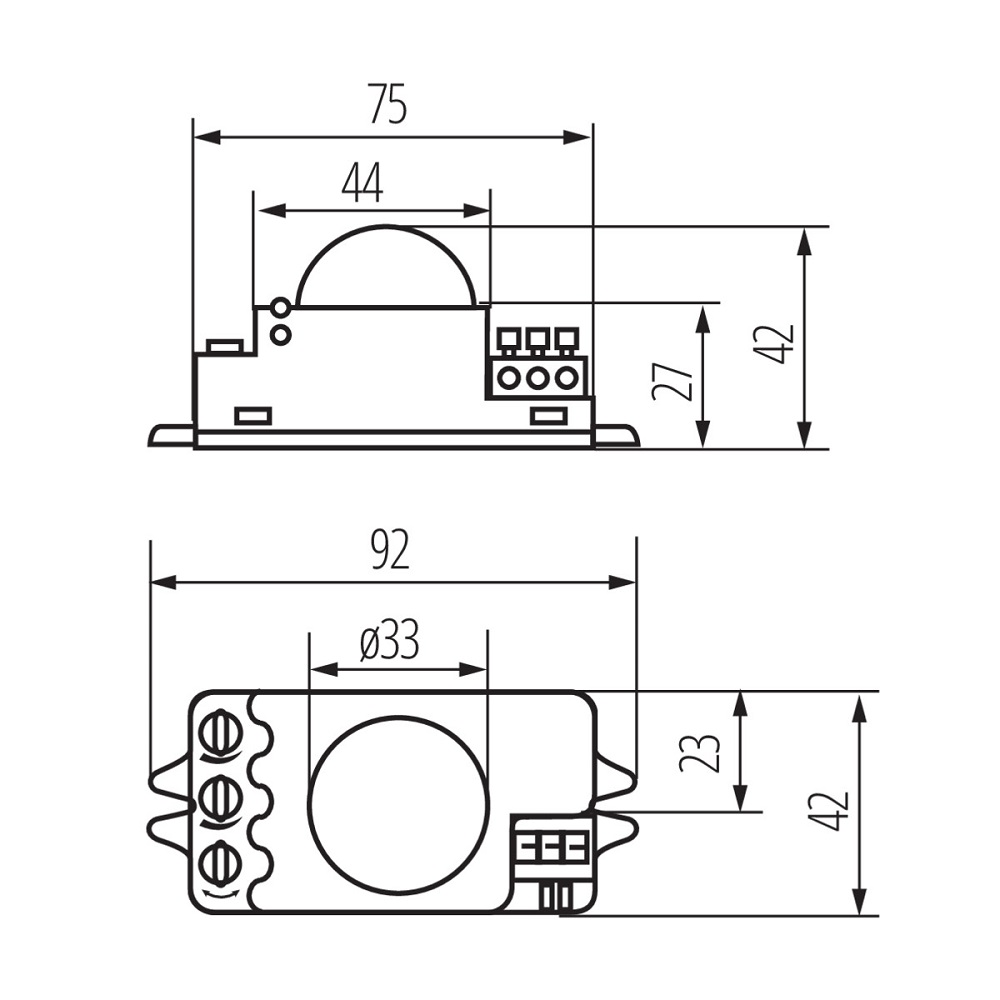

Weight and size
- Height [mm]: 42
- Width [mm] : 42
- Length [mm] : 92
- Weight : 60g
Technical data
- Rated voltage [V]: 220-240 AC
- Nominal frequency [Hz] : 50/60
- Color : white
- Maximum power [VA] : 1200
- IP rating 20
- Mounting location : wall mount, ceiling mount, wall/ceiling mount
- Degree of protection against electric shock : II
- Possibility of mounting on normally flammable surfaces : yes
- Sensor range [m] : max 8
- Sensor range [°] : H360/V160
- Minimum operating time [s] : 5
- Maximum operating time [min] : 12
- Sensor operating time [second-minute] : 5-12
- Sensor operating frequency [MHz] : 5.8
- Sensor type : microwave
- Setting of the illumination intensity with which the sensor detects movement [lx] : 2-2000
- Micro gap between relay contacts : yes
- Sensitivity adjustment
- Operating temperature [°C] : 5÷25
- Type of connection : terminal block
- Sections of the cables used [mm] : 1÷2,5
Brand
Kanlux
Color
White
IP protection degree
IP20
Packaging
Integral cardboard packaging
Power
1200VA
Supplier code
8820
