XYKPWM 1 channel 1Hz - 150KHz signal generator
EL3206
XYKPWM 1 channel 1Hz - 150KHz signal generator

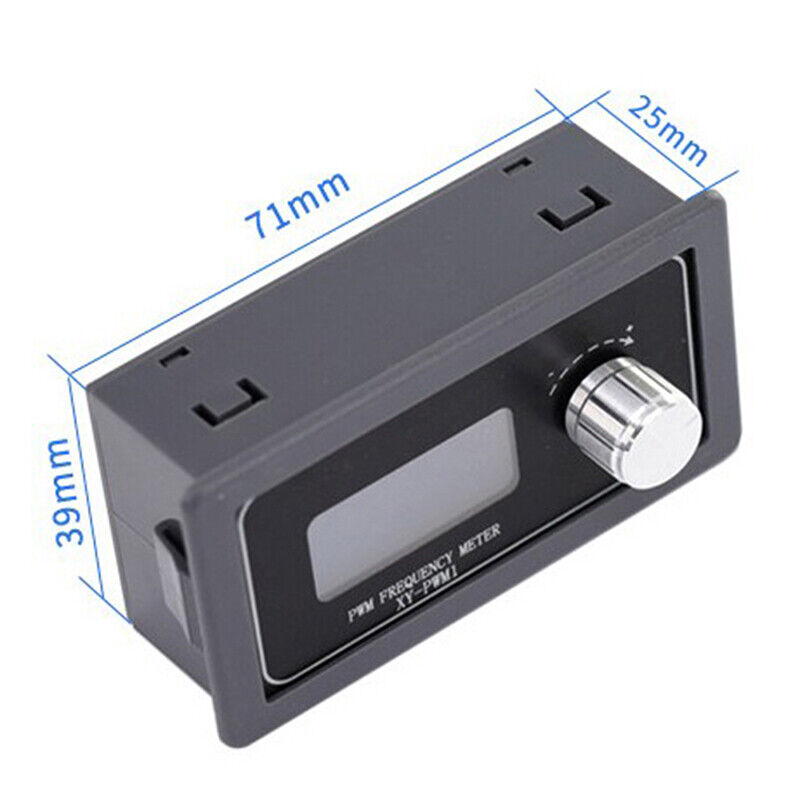

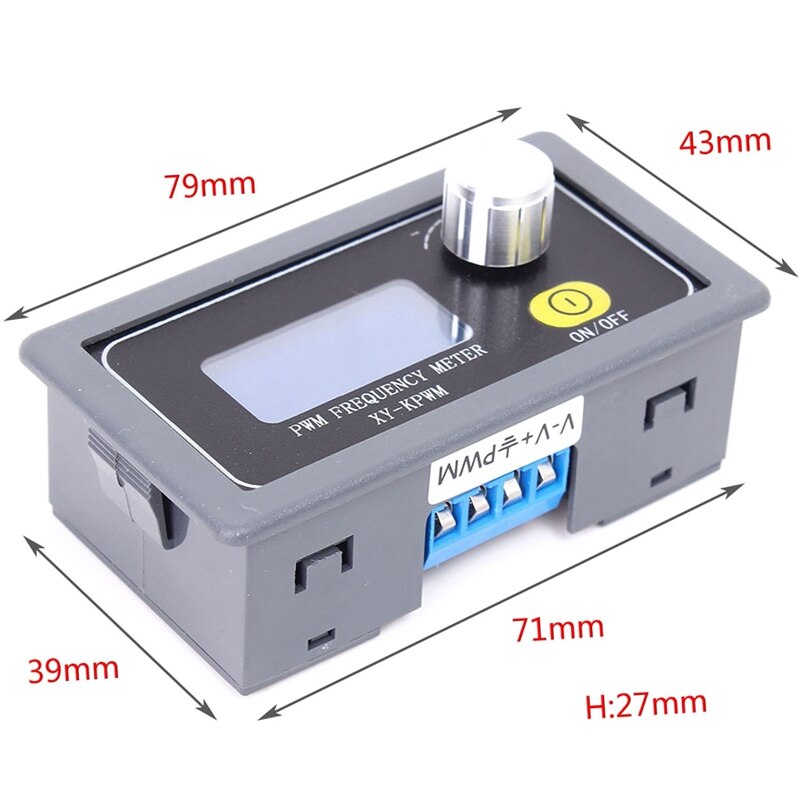

NB: Some details may differ from those shown in the image
Technical specifications
- Model: XY-KPWM
- Working Voltage: 3.330V
- Output Current: 530mA

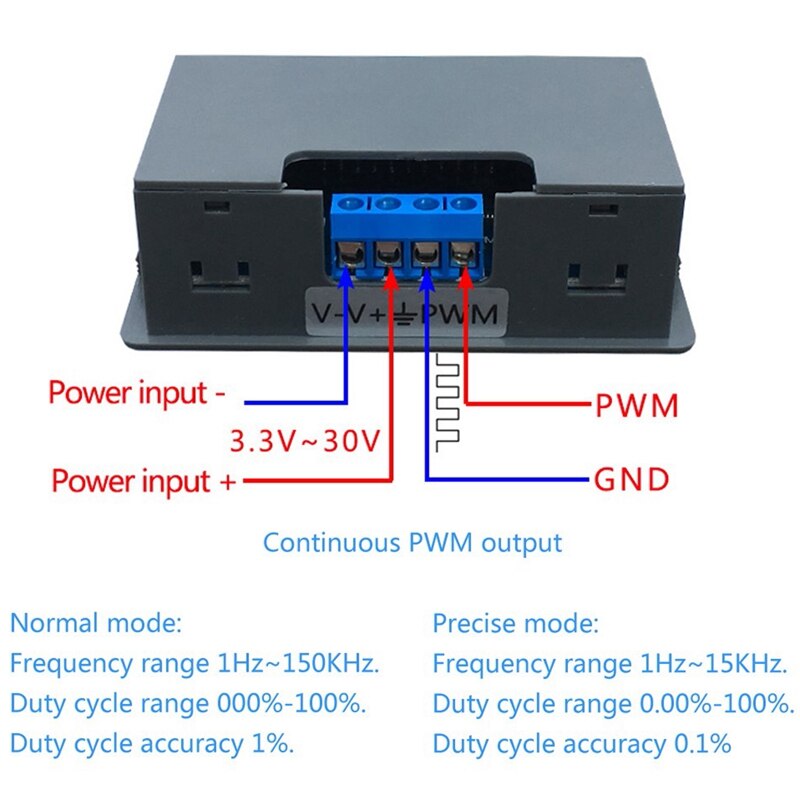

- Normal setting mode frequency range: 1Hz - 150KHz
- fine-tuning mode: 1Hz - 15KHz

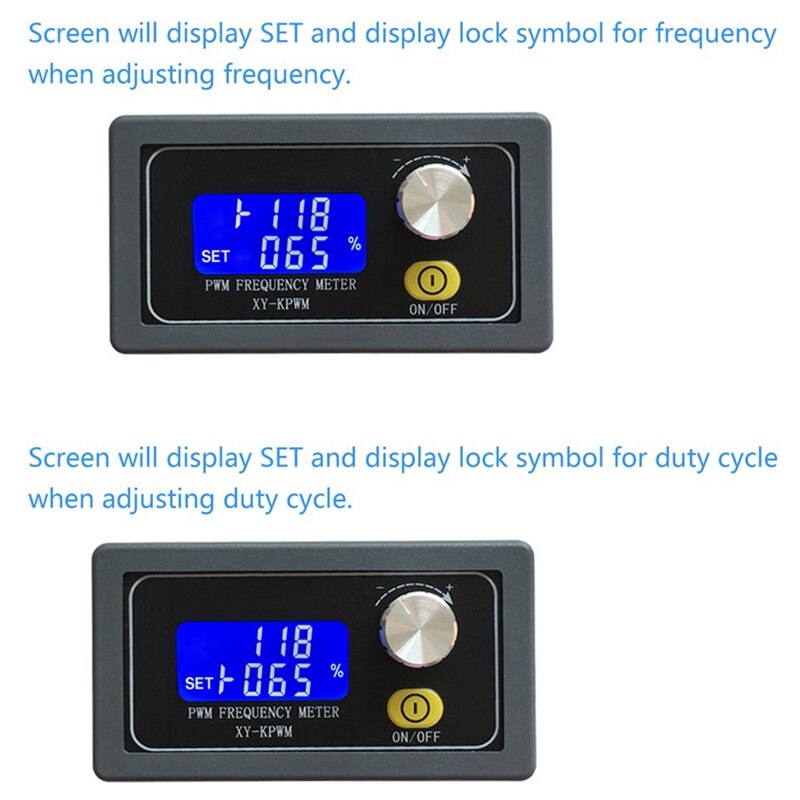

- Frequency and duty cycle are clearly displayed on the LCD screen

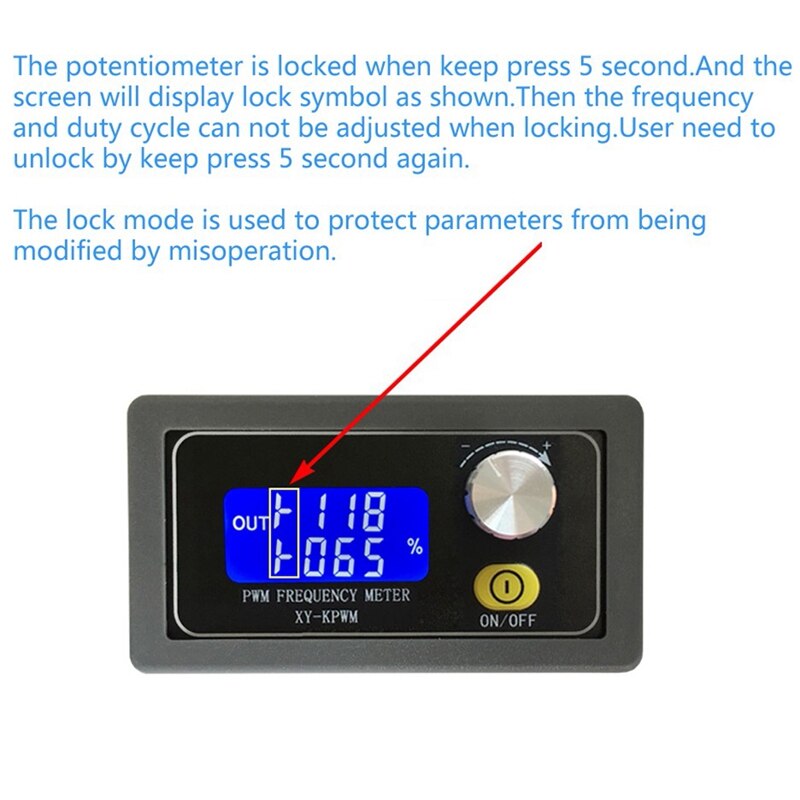

- Lock function to prevent wrong operation.
- With ON/OFF button control output.
- Support communication, TTL level.
- Used as a wave signal generator to generate development wave signals
- used to generate wave signals to control motors
- adjustable pulses output with microcontroller; pulses adjustable in
- output to control the related circuits (PWM regulation, etc. application).
Packaging
Plastic bag
