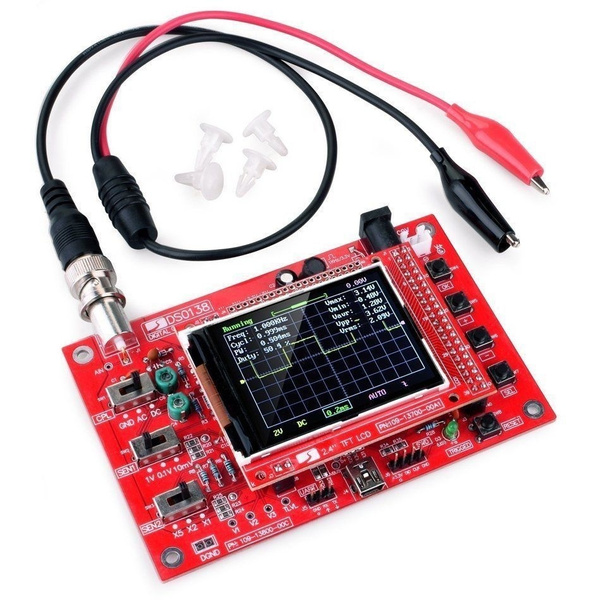

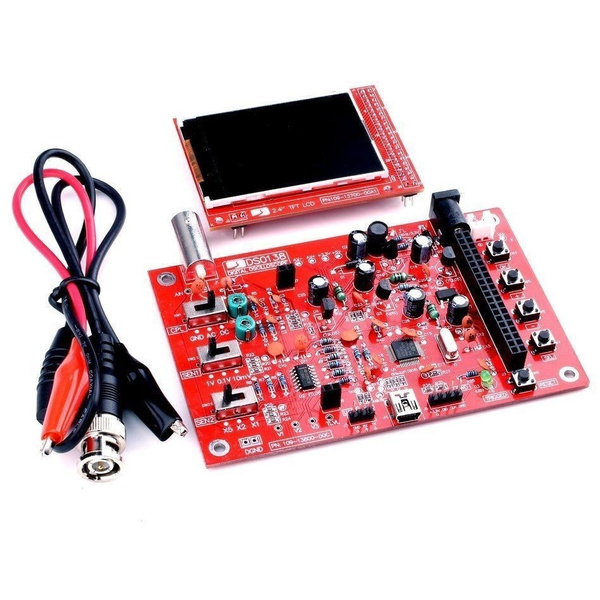

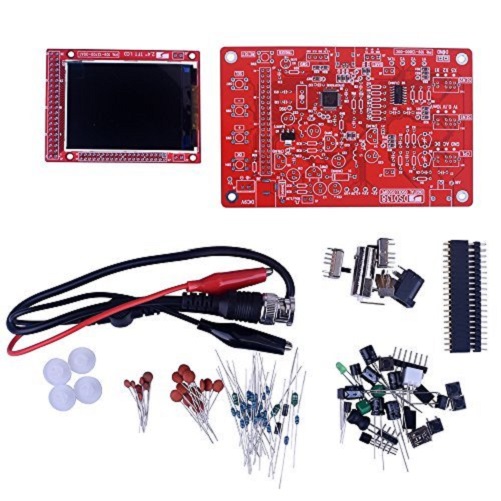

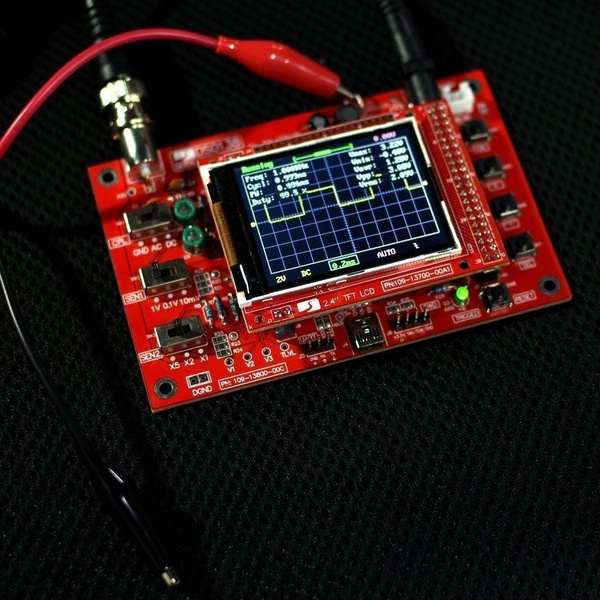

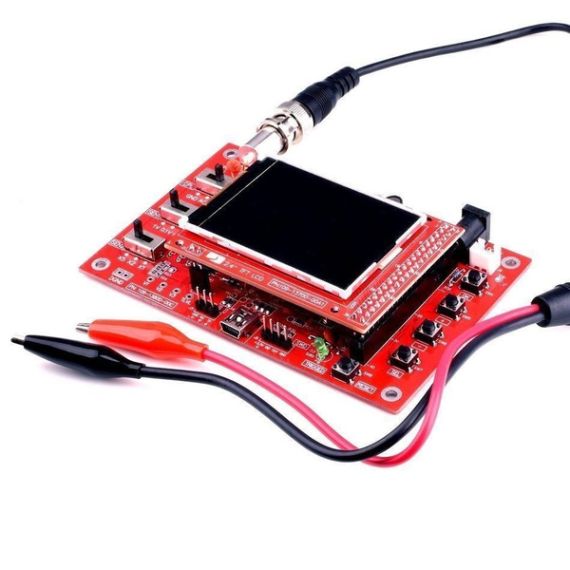

DSO138 Digital Oscilloscope Installation Kit
WB331
DSO138 digital oscilloscope installation kit
Main features
- Model: DSO138
- Analog bandwidth: 0 - 200 KHz
- Sampling frequency: 1 Msps max.
- Sensitivity: 10 mV / Div - 5 V / Div - sensitivity error: 5%
- Vertical resolution: 12 bit.
- Base time: 10us / Div 500s
- Div record length: 10202.
- 4 embedded dots.
- 1 KHz / 3, 3 V, wave-shaped test signal (HOLD) available
- Power supply: 9 V DC (acceptable 8 to 12 V ).
- Supply current: 120 mA.
- Note: power supply not included.
- Size: 117mm x 76mm x 15mm.
- Weight: 70 grams
Packaging
Plastic bag
Supplier code
DSO138
