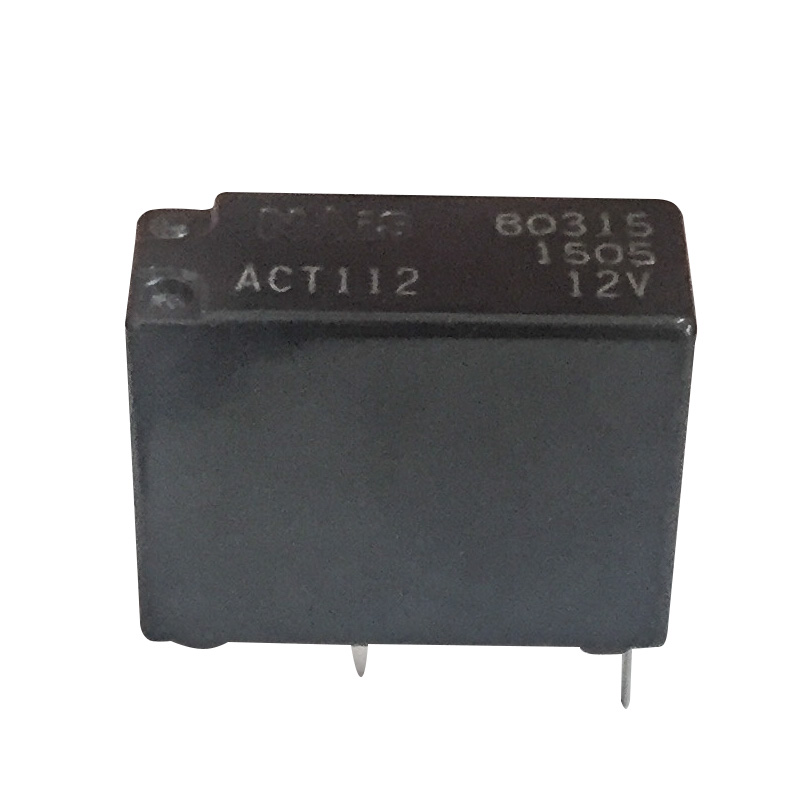

Relay ACT112 -12V - NAIS
21378
Relay ACT112 -12V - NAIS
Features
- AUTOMOTIVE Relay
- Type: ACT112
- Form C
- Nominal voltage VDC: 12V
- Nominal Current: 20A
- Max. Current: 35A (max. 2min.) 25A (2 hour) / 20'C
- Pick-up voltage (at 20° C) :, VDC (Initial): 7.2V
- Drop-out voltage (at 20° C) :, VDC (Initial): 1V
- Coil Resistance: 180 ohm
- Nominal operating current (at 20° C): 66.7mA
- Nominal Operating Power (at 20° C) :: 800mW
- Usable Voltage Range: 10-16V
- manufactured by NAIS (Panasonic)
Voltage
12V
