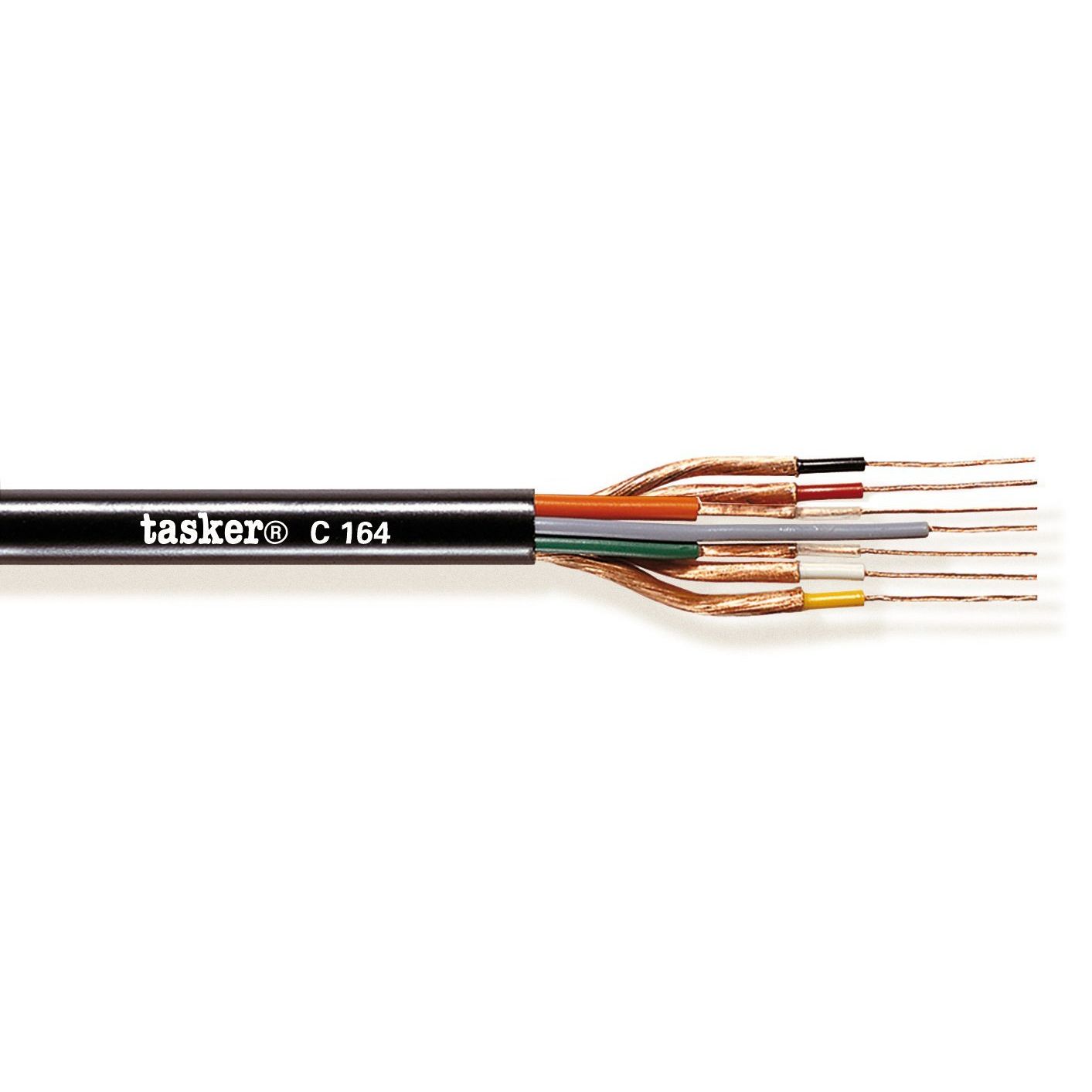

Tasker C164 SCART audio / video cable 2x0.15mmq + 4x0.15mmq + 1x0.15mmq
Q720
Special cable consisting of:
2 + 1 cores which are screened and isolated in a special way
4 shielded cores
2 isolated cores.
Ideal for the partial connection of SCART plugs from 9 or 11 poles
- 2 Video IN (Pin 20-17)
- Video OUT ( Pins 19-17)
- +1 Red Video (Pins 15-13)
- +4 Stereo audio IN (Pins 6-2-4)
- Audio stereo OUT (Pins 3-1-4 )
- +1 Power + 8V. (Pin 8)
Conductors: red copper OFC
Core color
- 2 White
- +4 Black, Red, Yellow, White
- +1 Gray
- Shield: spiral in red covering 100% OFC copper
- Internal sheath colors: Green, Blue, Orange
Features
- Conductors: OFC red copper
- Conductor insulation: PVC
- Core color: 2 White + 4 Black, Red, Yellow, White + 1 Gray
- Shielding: Spiral covering 100 % OFC red copper
- Inner sheaths: PVC
- Inner sheath colors: Green, Blue, Bright orange
- Outer sheath: PVC
- Sheath color: Black
