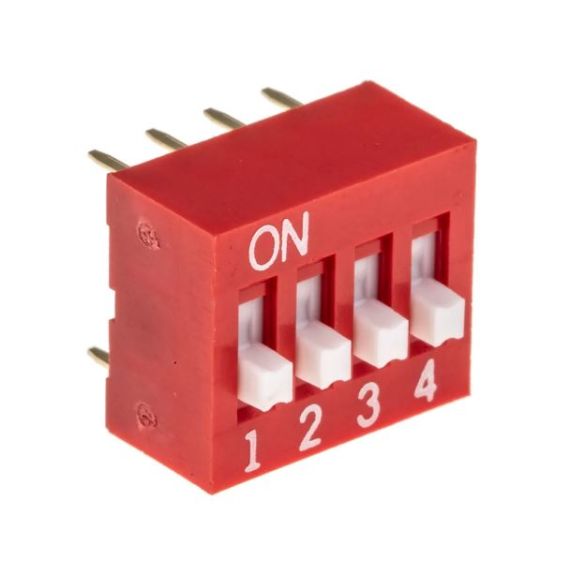

DIP Switch NDS-04-V, SPST, 25 mA, 4 Position, Raised Actuator, Through Hole
ND4660
DIP switch NDS-04-V, SPST, 25 mA, 4 positions, actuator a Raised, Through hole
The NDS series consists of through hole SPST switches with raised actuator and are available in different positions. Applications include telecommunications, computers, test equipment, security and instrumentation
- Drive force 10 N max
- 2 mm stroke
- 25 mA 24 V DC, nominal switching voltage
- 100 mA 50 V DC, nominal value without switching
| Contact Configuration | SPST |
| Nominal contact current | 25 mA |
| Contact material | Phosphor Bronze |
| Number of positions | 4 |
| Mount type | Through hole |
| Type of actuator | Raised |
| Package | DIP |
| Maximum operating temperature | + 85° C |
| Minimum operating temperature | - 40° C |
| Operating temperature range | - 40 °C + 85° C |
| Dielectric strength | 500V dc |
| Nominal voltage | 24V dc |
Manufacturer code: NDS-04 -V
Supplier code
NDS-04-V
