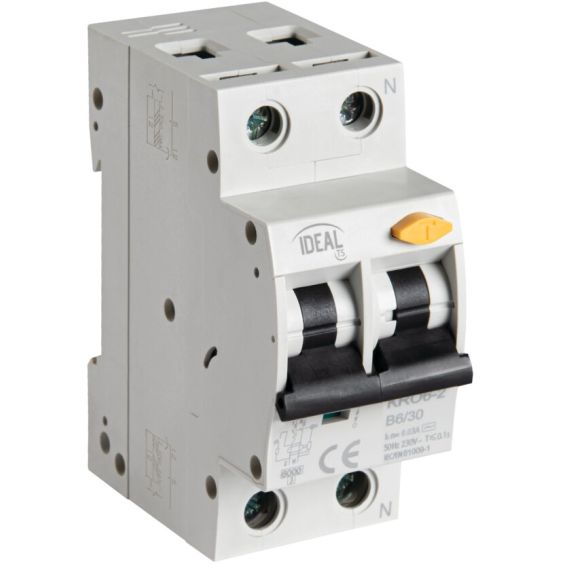

Differential circuit breaker 6kA 2P
KA2298
Differential circuit breaker 6kA 2P
The differential circuit breaker has the function of interrupting the flow of energy when there is direct or indirect contact and a current leakage occurs, or when an overload occurs. Compliance with: EN 61009 -1 Rated breaking capacity: 6kA according to EN60898-1
Basic information
- Brand: Kanlux
- EAN: 5905339232205
- Supplier code: 23220
- Model: KRO6-2/B6/30
Weight and dimensions
- Height [mm] 81
- Width [mm] 35
- Length [mm] 75
- Weight 180g
Technical data
- Nominal voltage [V] 230 AC
- Nominal frequency [Hz] 50
- Rated current [A] 6
- Rated differential current [mA] 30
- Sections of cables used [mm] 10÷16
- Operating temperature [°C] -25÷40
- IP 20 grade
- AC differential protection type
- Rated short circuit current [A] 6000
- Energy limitation class 3
- Release Property B
- Modules 2
- PN-EN 61009 -1 standards
- Rated insulation voltage Ui [V] 400
Brand
Kanlux
Packaging
Integral cardboard packaging
Supplier code
23220
