2P 32A Kanlux circuit breaker
KA2087
2P 32A Kanlux circuit breaker
Automatic circuit breaker: used for protection against overloads and short circuits. Complies with EN60898-1 standards.
Basic information
- Brand: Kanlux
- EAN: 5905339325884
- Supplier code: 32588

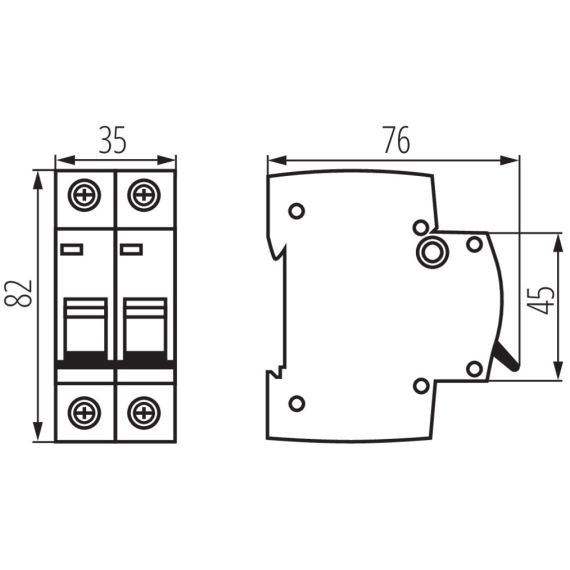

Weight and size
- Height [mm] 82
-
Width [mm] 35
-
Length [mm] 76
-
Weight 194g
Technical data
- Rated voltage [V] 230 AC
- Nominal frequency [Hz] 50
- Rated current [A] 32
- Rated short-circuit current [A] 6000
- Release properties C
- Energy limitation class 3
- Modules 2
- Application 2
- IP 20 rating
- Sections of used cables [mm] 1÷25
- Operating temperature [°C] 5÷40
- PN-EN 60898-1 standards
- Rated insulation voltage Ui [V] 500
Brand
Kanlux
Packaging
Loose
Supplier code
32588
