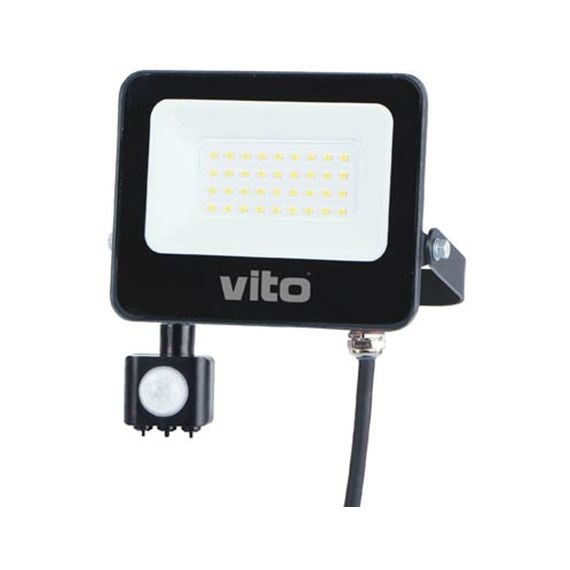

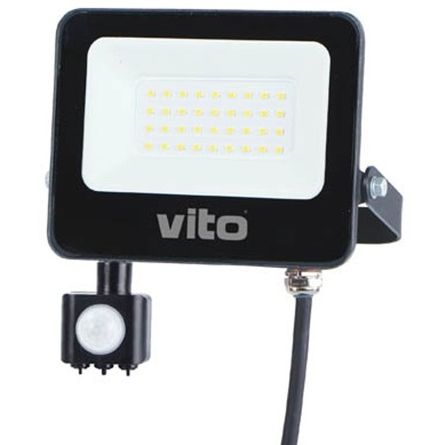

Outdoor LED floodlight with PIR sensor 30W 3000Lm cold light 6000K IP65
EL1973
Outdoor LED floodlight with PIR sensor 30W 3000Lm cold light 6000K IP65
SAVA S first generation, is a low-cost family of waterproof floodlights, IP65, equipped with SMD LEDs and PIR sensor.
Mounting arm in profiled sheet steel.
Diffuser in transparent tempered glass with a thickness of 4 mm. Constant current LED drivers included. Housing in die-cast aluminum alloy, with high heat dispersion coefficient, electrostatically painted in dark sandblasted gray.
Rubber-coated power cable, 3x0.75 mm², length 0.15 m.
PIR Sensor Settings
- Detection range: 12m long and 4m high
- Time setting: (10 sec-4 min)
- Sensitivity adjustment: (10-2000 lux)
Characteristics
| Brand | Vito |
| EAN code | 6970233833864 |
| Supplier code | 3022720 |
| Light temperature (KELVIN) | 6000K (cold white) |
| Power (W) | 30 |
| Luminous efficiency | 100 |
| Lighting angle | 120° |
| CRI | 80 |
| Power factor | 0.9 |
| IP Protection | IP65 |
| Nominal duration (H) | 30000h |
| Light sensitivity (lx) | 10Lux |
| Operating voltage (V) | 185-265V |
| Energy efficiency class (EEI) | AND |
| Electrical protection | Class I |
| Body material | Aluminum |
| Color | RAL 7024 |
| Dimensions (mm) | 159*178*55.9 |
| Temperature (Ta) | ·-20-50° |
| Sensor type | PIR |
| Motion detection angle | 120° |
| Maximum detection distance (m) | 5-8m |
| Sensor delay (s) | 10S-10MIN |
| Installation height (m) | 5-8m |
| Lumens (Lm) | 3000 |
Brand
Vito
Packaging
Integral cardboard packaging
Supplier code
3022720
