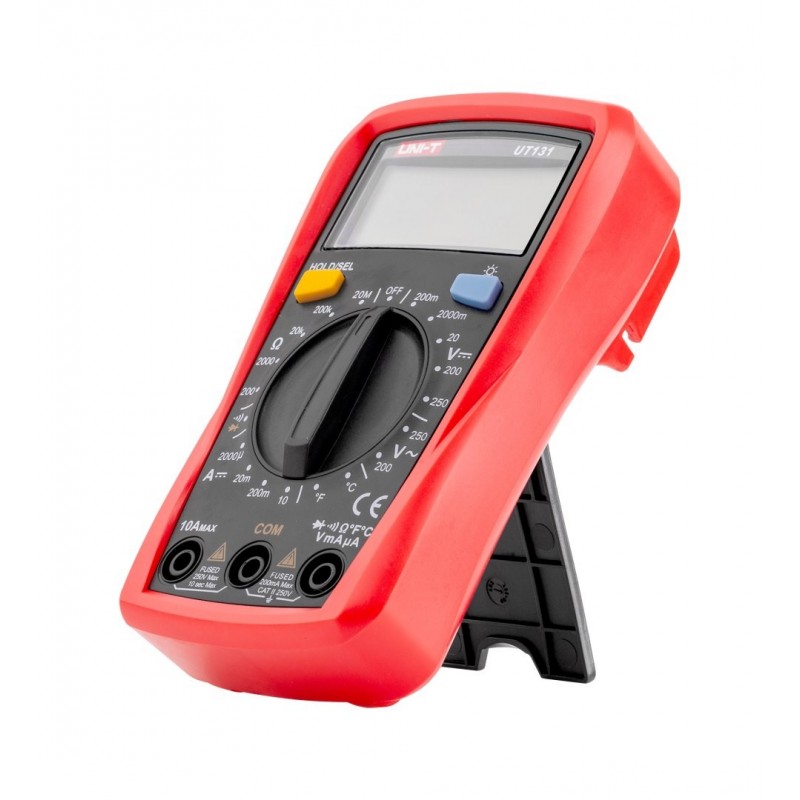

Digital multimeter with test leads and temperature probe 250V 20MOhm UT131C UNI-T
U1050
Digital multimeter with test leads and temperature probe 250V 20MOhm UT131C UNI-T
The next-generation UT131 series redefines performance standards for entry-level digital multimeters.
Our innovative industrial design ensures these products can withstand drops from 2 meters.
The new LCD display layout offers a better user experience.
This series ensures that users can work safely in a CAT II 250V environment.
Special features are: temperature measurement (UT131C);
Certifications: CE, UKCA, cETLus
- Brand: UNI-T
- EAN code: 6935750513279
- Supplier code: UT131C
- Clear LCD display
- Convenient protective cover, with groove for hanging tips
- 2 meter drop test, precision protection
- Loud buzzer sound
- Ergonomic design
| Specifications | Range | UT131C |
| DC voltage (V) | 200mV~250V | ±(0.5%＋2) |
| AC voltage (V) | 200mV~250V | |
| 200V~250V | ±(1.2%+3) | |
| DC Current (A) | 200μA~10A | |
| 2000μA~10A | ±(1%+2) | |
| AC Current (A) | 200μA~10A | |
| Resistance (Ω) | 200Ω～200MΩ | |
| 200Ω～20MΩ | ±(0.8%+2) | |
| Capacity (F) | 2nF~2mF | |
| Temperature | -40℃~1000℃ | ±(1%+4) |
| ‒40℉~1832℉ | ±(1.5%+5) |
| Characteristics | |
| Display count | 2000 |
| Auto Power Off/Auto Backlight Off | √ |
| Diode/Buzzer continuity test | √ |
| Drop test | 2m |
| Test probe holder | √ |
| Range selection | Manual |
| General characteristics | |||||
| Power | 1.5V battery (R03) x 2 | ||||
| Display dimensions | 53mm x 28mm | ||||
| Weight | 473g | ||||
| Color | Red and grey | ||||
| Dimensions (W x H x D) | 131mm x 95mm x 58mm | ||||
| Accessories | Tip, manual | ||||
Brand
UNI-T
Packaging
Integral cardboard packaging
Supplier code
UT131C
