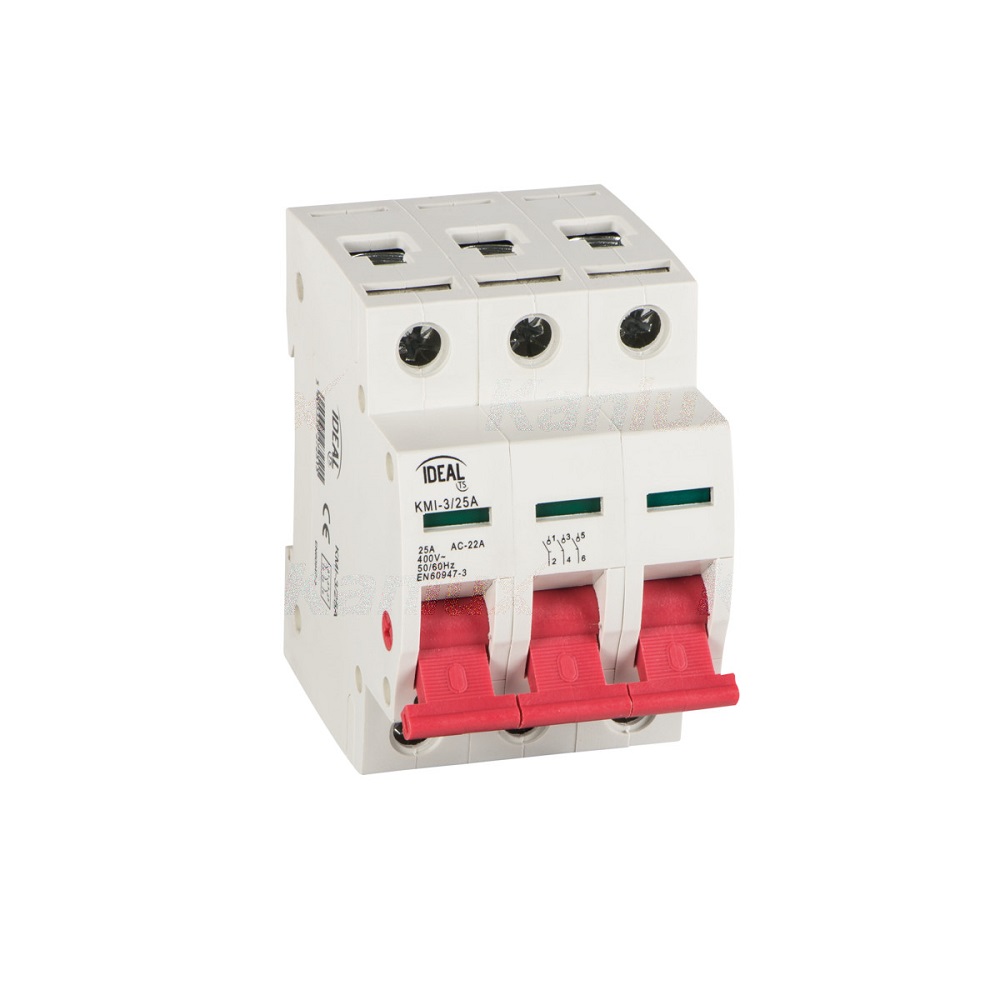

KMI-3 25A 3P Kanlux switch disconnector
KA1058
KMI-3 25A 3P Kanlux switch
The switch-disconnector is used to disconnect the circuits carrying a rated current.
Basic information
- EAN13: 5905339272515
- Supplier code: 27251
- Place of use : indoors

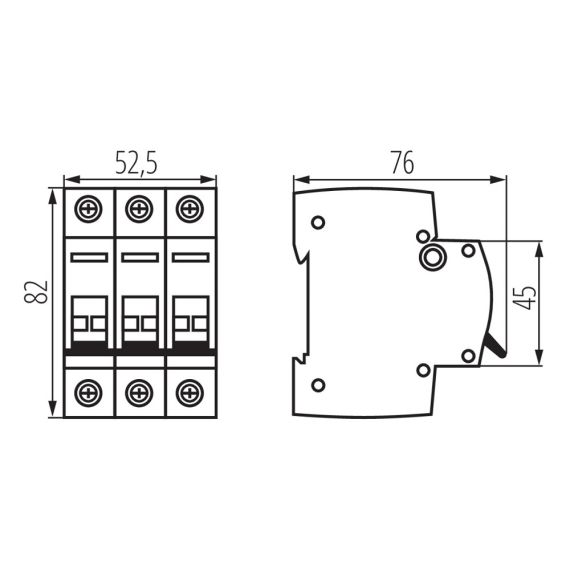

Weight and size
- Height [mm]: 82
- Width [mm] : 52.5
- Length [mm] : 76
- Weight : 244g
Technical data
- Rated voltage [V]: 230/400 AC
- Nominal frequency [Hz] : 50/60
- Use category : AC-22A
- Forms : 3
- Rated current [A] : 25
- IP rating 20
- Sections of the cables used [mm] : 1÷50
- Operating temperature [°C] : -25÷45
- Standards : PN-EN 60947-3
Brand
Kanlux
Color
White
IP protection degree
IP20
Supplier code
27251
