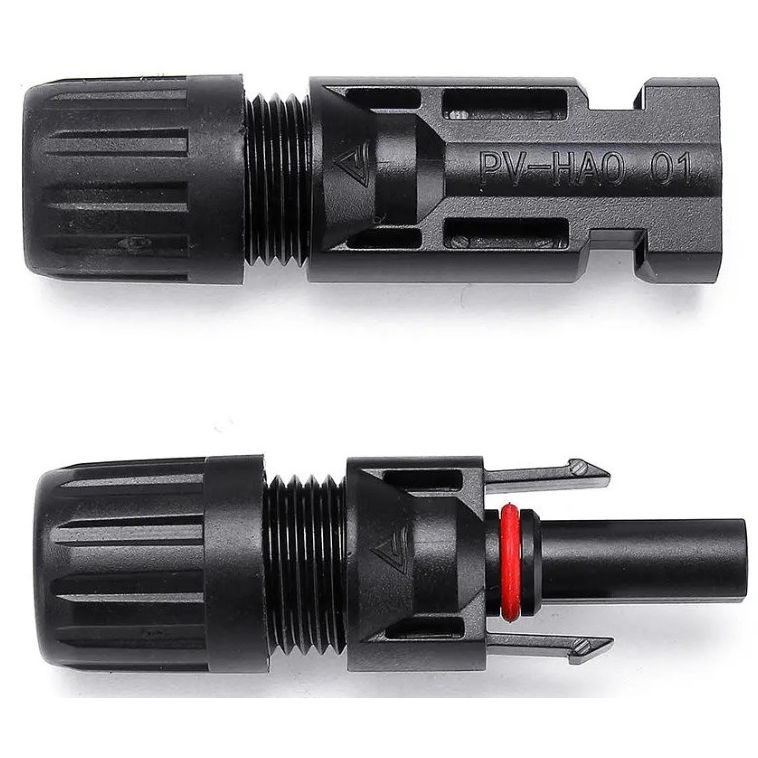

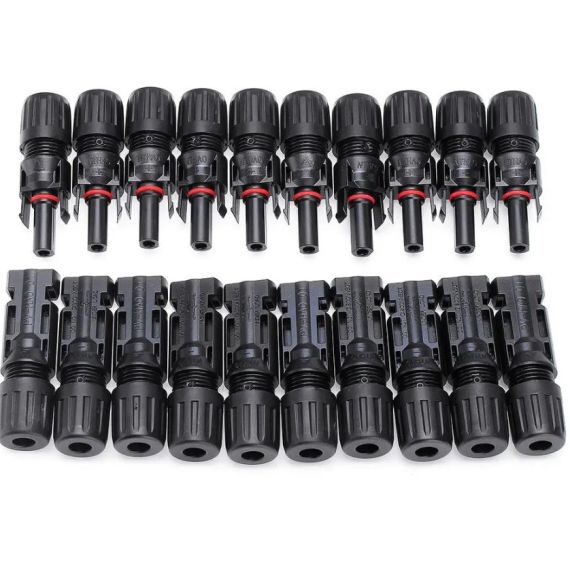

MC4 30A 1000V 2.5 / 4 / 6mm male and female connector for photovoltaic panel
WB1602
MC4 30A 1000V 2.5 / 4 / 6mm male and female connector for photovoltaic panel
Features
- Model: MC4
- Nominal voltage 1000 V
- Rated impulse voltage: 1000V
- Test voltage: 6 kV (50Hz)
- Suitable for cables: 10, 12, 14 AWG (2.5mm2 / 4mm2 / 6mm 2;)
- Rated current: 24 A-14 AWG (2.5 mm 2;), 30A-12 and 10 AWG (4 mm 2 and 6 mm 2;)
- Protection class: IP67

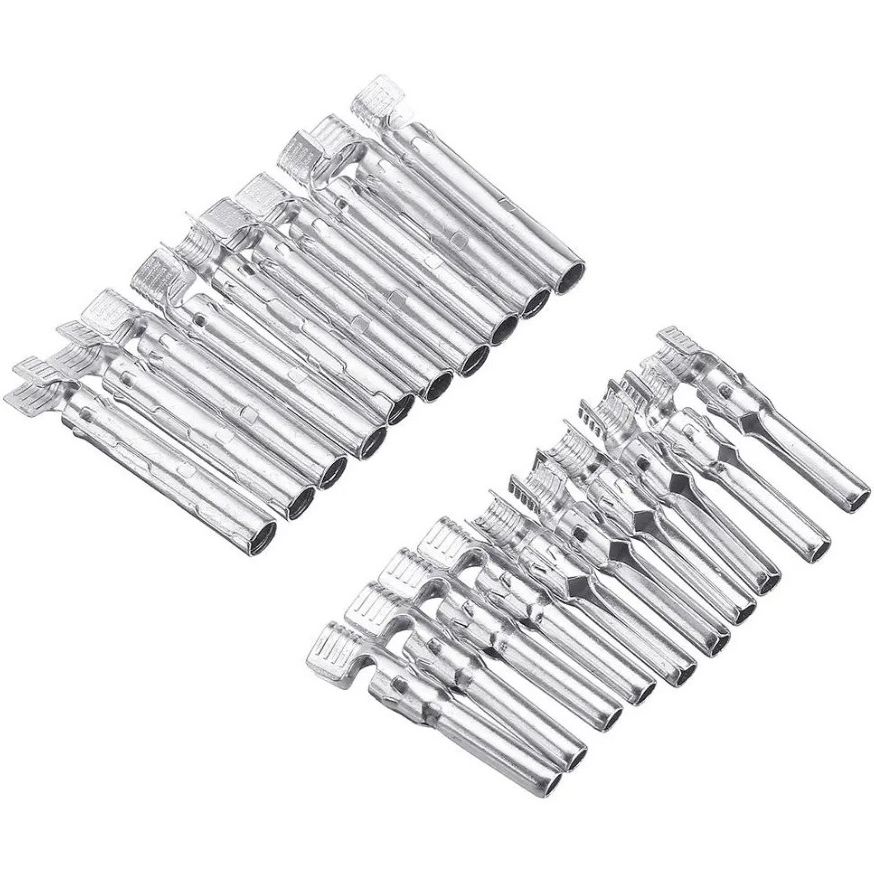

- Contact material: copper, silver plated
- Insulation material: PC / PA
- Operating temperature: -40 ° C + 90 ° C
- The safety class: II
- Flame class: UL94-V0
- Contact resistance: ≤5mΩ
- Insertion / withdrawal force: 50N / 50N
- Closure system: snap
Packaging
Bulk
Supplier code
MC4
