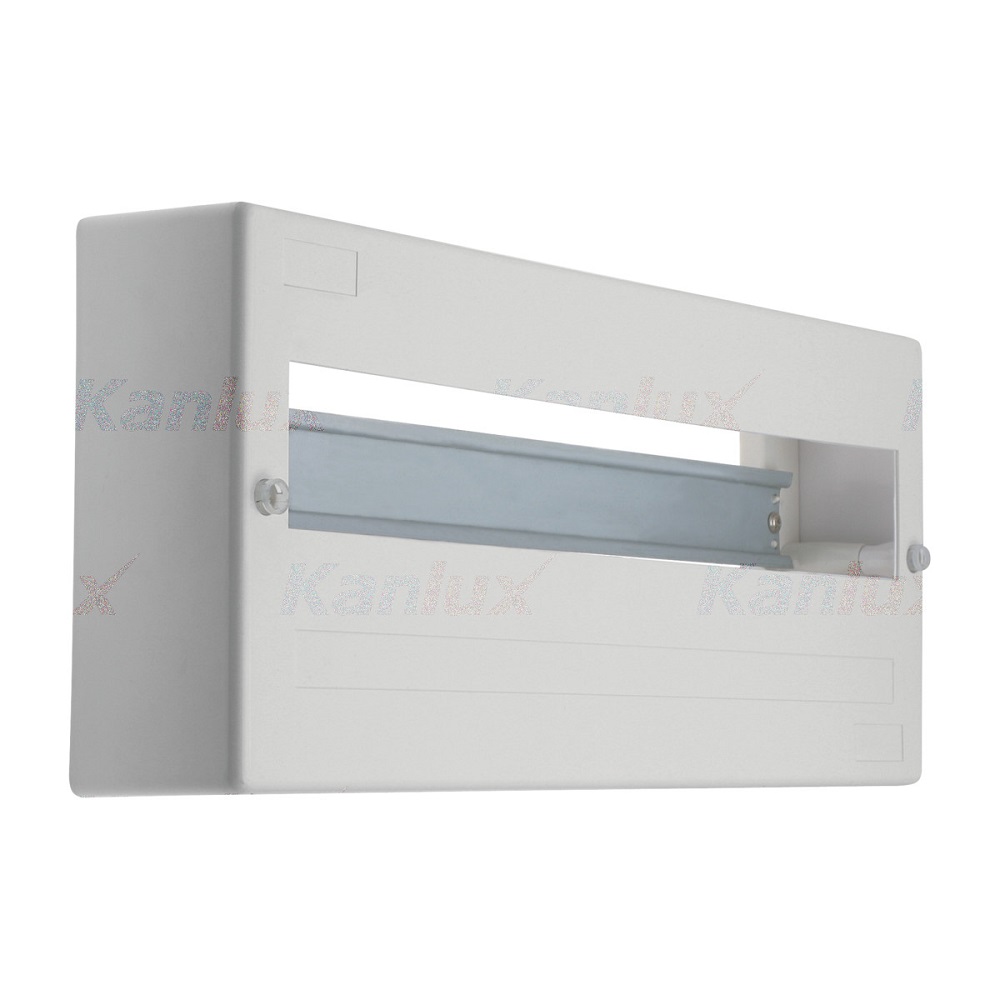

Wall-mounted electrical distribution panel DB series 18 Kanlux modules
KA2026
Wall distribution board DB series 18 Kanlux modules
Electrical panels of the DB series that satisfy the requirement of heat resistance with a temperature of 650° C can only be used on non-combustible surfaces (for example solid walls made of non-flammable materials).
They cannot be applied on flammable surfaces (for example plasterboard, wood), on so-called "hollow walls" or on technical shafts.
Basic information
- EAN13: 5905339038548
- Vendor code: 3854
- Color: white
- Material: plastic materialÿ
Weight and dimensions
- Weight: 390g
Technical data
-
Rated voltage [V]: 230/400 AC
-
Nominal frequency [Hz ]: 50
-
Color: white
- Rated current [A]: 63
- Modules: 18P
- Mounting location: wall mounting
- IP Grade 30
- temperature resistance [°]: 650
- IK grade 06
- Degree of protection against electric shock: II
- number of files: 1
- Standards: PN-EN 62208
Brand
Kanlux
Color
White
IP protection degree
IP30
Number of modules
18
Supplier code
3854
