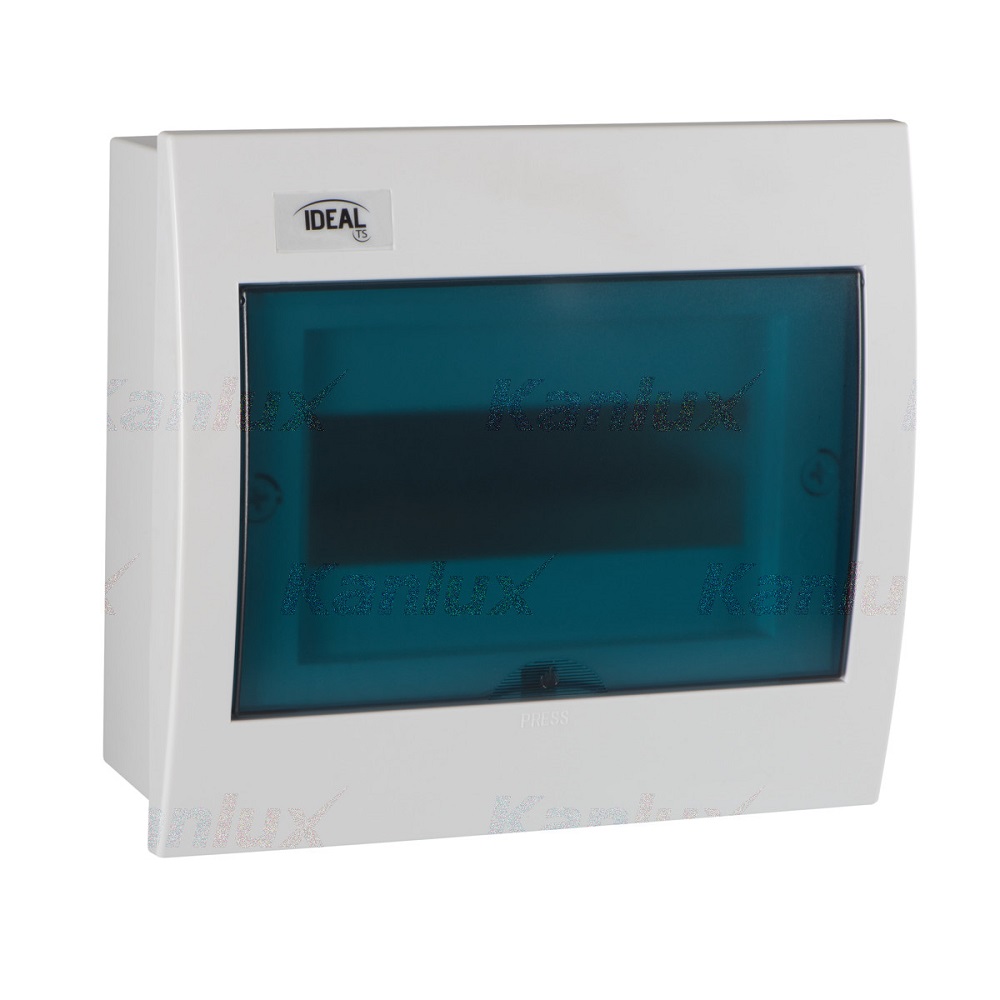

KDB 8 Kanlux modules flush-mounted electrical distribution panel
KA2060
KDB 8 Kanlux modules flush-mounted distribution board
KDB series electrical panels that meet the requirement of heat resistance with a temperature of 650° C can only be used on non-combustible surfaces (for example solid walls made of non-flammable materials).
They cannot be applied on flammable surfaces (for example plasterboard, wood), on so-called "hollow walls" or on technical shafts.
Basic information
- EAN13: 5905339236173
- Vendor code: 23617
- Color: white / light blue
- Material: plastic material
Weight and dimensions
- Height [ mm]: 220
- Width [mm]: 102
- Length [mm]: 240
- Weight: 580g
Technical data
-
Rated voltage [V]: 230/400 AC
-
Nominal frequency [Hz]: 50/60
-
Color: white / light blue
- Rated current [A]: 63
- Modules: 8P
- Door color: light blue
- Mounting location: for flush mounting in the wall
- IP grade 30
- temperature resistance [°]: 650
- IK Grade 07
- Degree of protection against electric shock: II
- file number: 1
- Standards: PN-EN 62208
Brand
Kanlux
Color
White
IP protection degree
IP30
Number of modules
8
Supplier code
23617
Voltage
400 V
