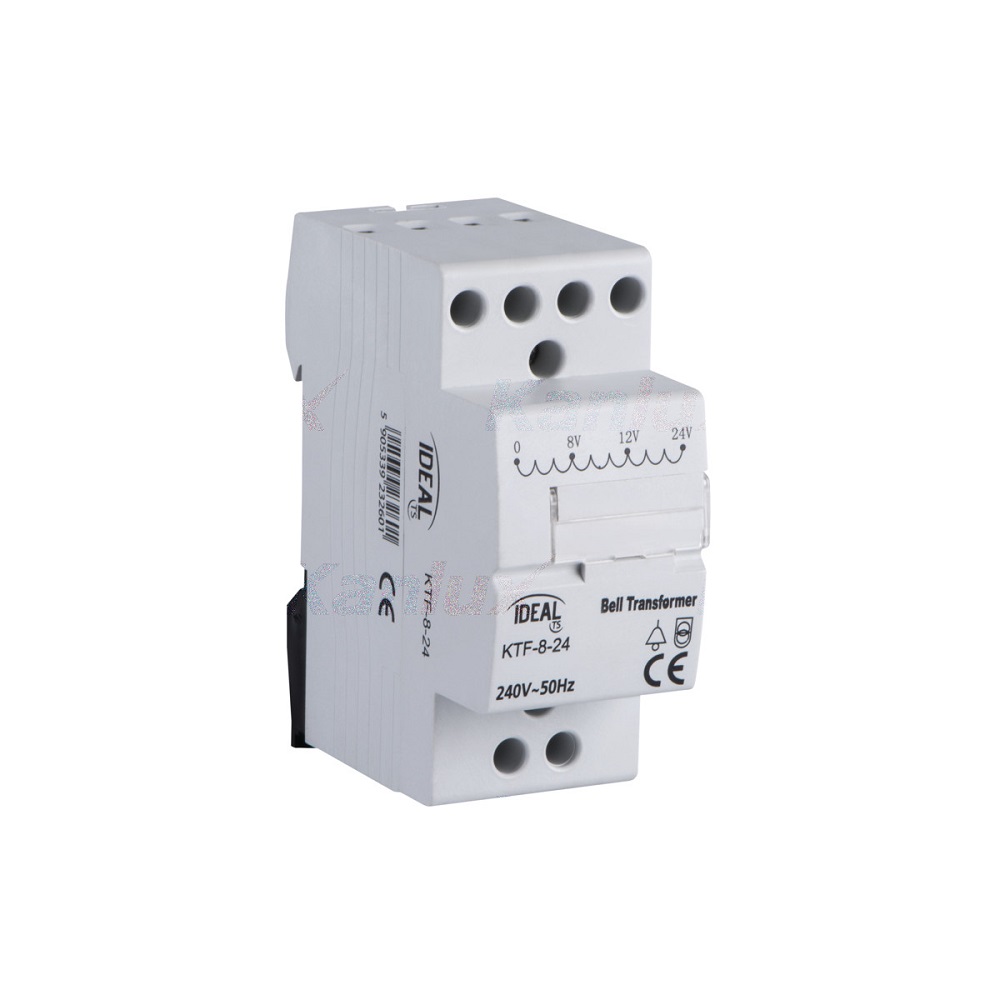

KTF Kanlux din rail doorbell transformer
KA1158
Doorbell transformer for KTF Kanlux din rail
The bell transformer is used to power bell circuits with 8, 12 or 24VAC.
Basic information
- EAN13: 5905339232601
- Vendor code: 23260
- Color: white

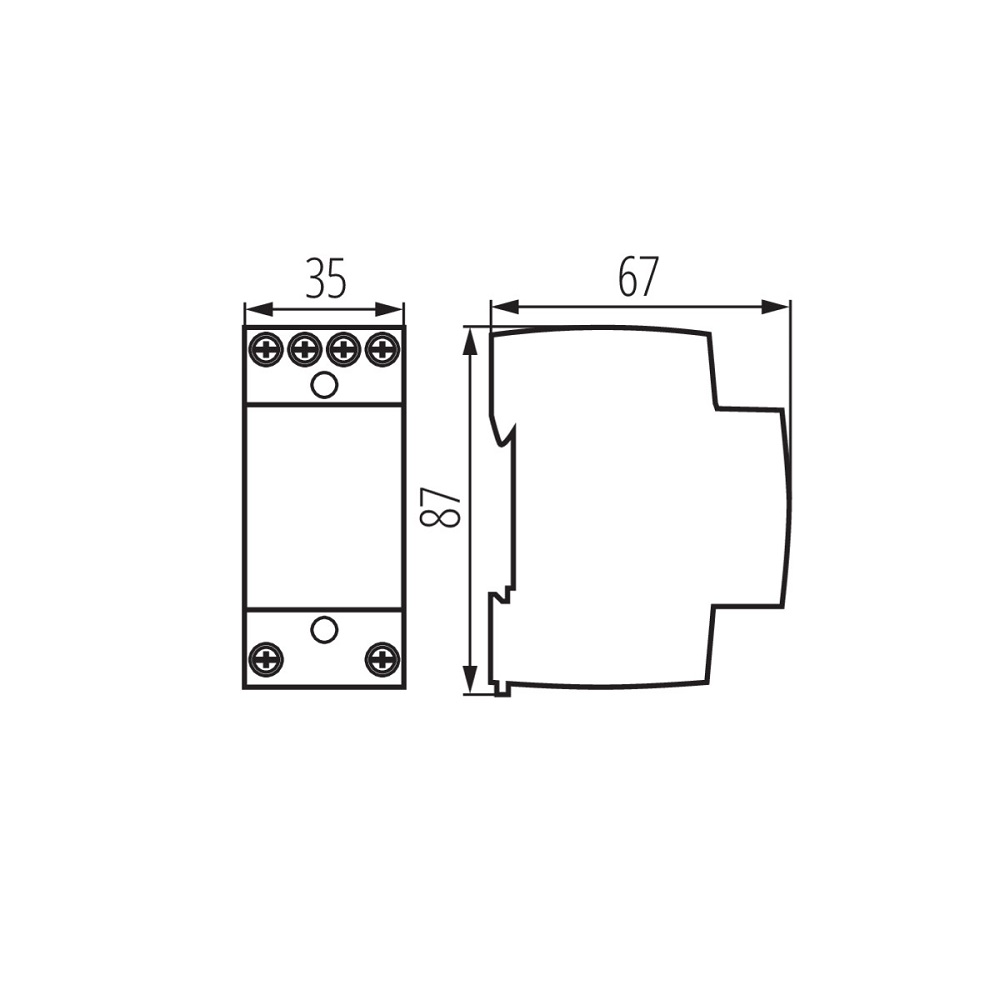

Weight and dimension
- Height [mm]: 87
- Width [mm]: 67
- Length [mm]: 35
- Weight: 320g
Technical data
- Rated voltage [V]: 230 AC
- Color: white
- Modules: 2
- Nominal power [VA]: 8
- Input voltage - PRI [V]: 230 AC
- Output voltage - SEC [V]: 8/12 / 24V AC
- Mounting location: for binary TH35
- Standards: PN-EN 61558
Brand
Kanlux
IP protection degree
IP20
Power
8VA
Supplier code
23260
