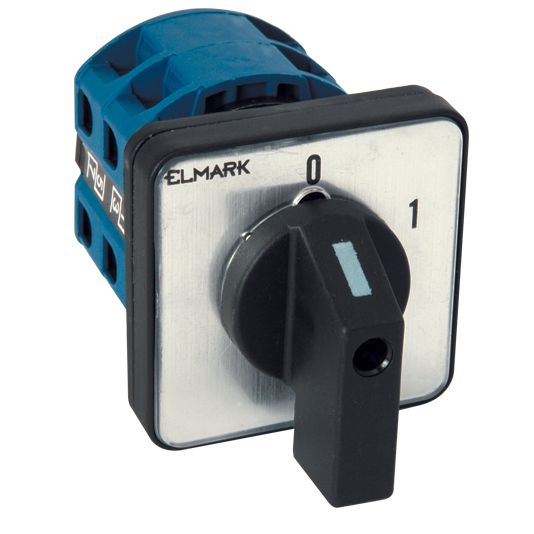

2-level switch LW26-10Q 10A Elmark
EL3010
2-level switch LW26-10Q 10A Elmark
Technical characteristics
- Power supply voltage: 230 / 400V; 50Hz
- Number of levels: 2
- Number of positions: 2
- Insulation voltage: 690V
- Impulse voltage withstand: 6 000V
- Mechanical resistance to wear: 3х105 switching cycles
- Operating temperature: -10 ° С - + 50 ° С
- Humidity: 35 -85% relative humidity
- Switching capacity: 20-160 °
- UV resistant plastic
- Cable connection : screw connection
- Bully tightening torque: 1,33 Nm
- Maximum section of power supply conductors: 50,0mm2
- Mounting: Directly to the control panel
- Surface thickness: max 5 mm
- Model: LW26 - 10Q
- Rated current: 10 A
- Degree of protection: IP42
- Number of levels: 2
- Switch levels: 2
- Degrees switching: 2
- Brand: ELMARK
- EAN code: 3800131137227
- Vendor code: 492101
Brand
Elmark
Form
Square
IP protection degree
IP42
Packaging
Integral cardboard packaging
Supplier code
492101
