Professional mixer 5 channels Bluetooth/USB/Stereo RCA inputs
SP695
Professional mixer 5 channels Bluetooth/USB/Stereo RCA inputs
- Model: F-5A
- 5-channel mixer with three stereo channels and one set of independent stereo source channels.
- All microphone inputs adopt an independent low-noise microphone preamplifier.
- 1/4" stereo jack and balance control to equalize all stereo channels.
- Stereo output for recording applications.
- Freely adjustable 3-channel EQ for all five channels
- Built-in 48V phantom power for condenser microphones.
- Integrated effects processor

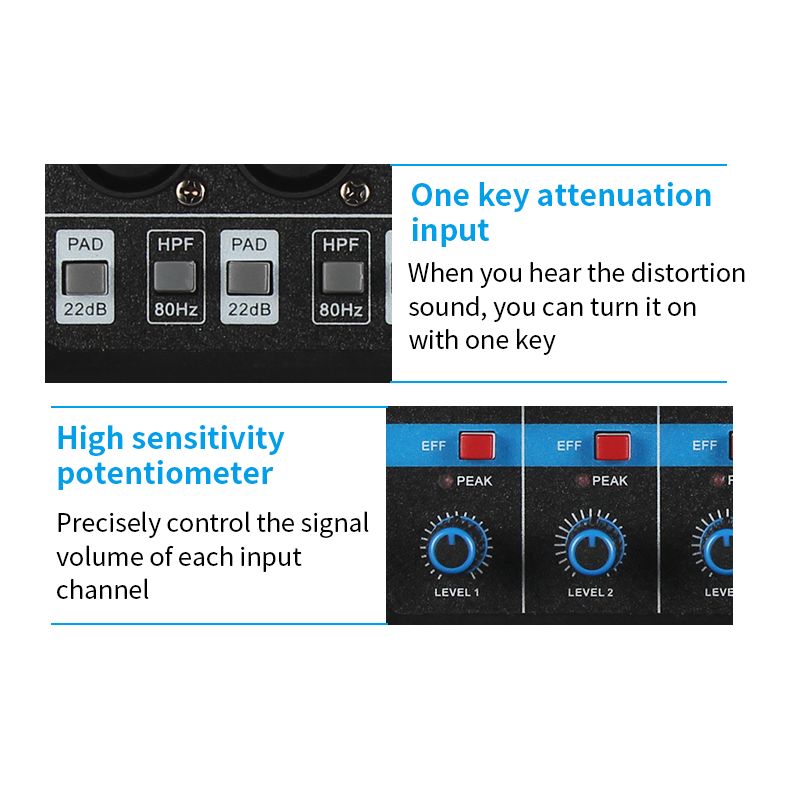

- PAD switch for mono type inputs
- HPF switch

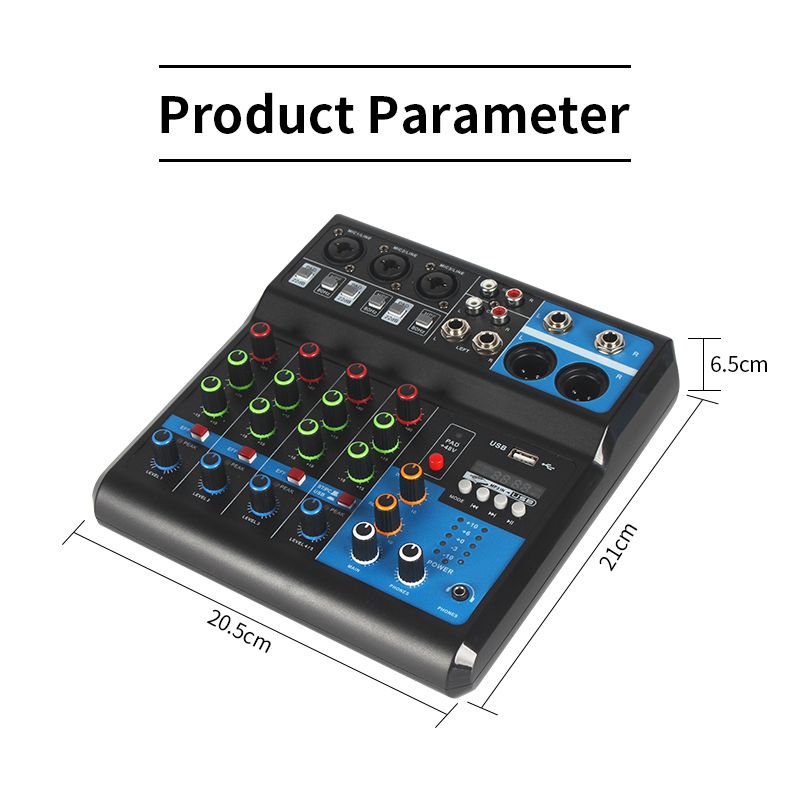

Dimensions
Microphone input
- Frequency Response: 10Hz - 200kHz
- Range Gain: +14dB - +60dB
- SNR: 120dB EIN
Line inputs
- Frequency Response: 10Hz - 130kHz
- Range Gain: -6dB - +38dB
- SNR: 95dB EIN
stereo channels
- Frequency Response: 10Hz - 70kHz
- Range Gain: line -8 +15dB / microphones: +13 - +60dB
- SNR: line 90dB EIN / microphone: 104dB EIN
equalization
- LOW: 50Hz, +/-15dB
- MID: 700Hz, +/-15dB
- HIGH: 10kHz, +/-15dB
Diet
- DC 5V/1A, via USB type C cable and power adapter (included)
Included in the package
- USB Type C Power Cable
- DC 5V power supply
- USB cable for PC connection
- Manual in English
Packaging
Integral cardboard packaging
Supplier code
F-5A
